Parkash Gears has been making worm gear and worm wheel sets in Ludhiana, Punjab since 1952. Worm gear sets are among the most frequently replaced parts we make: they wear by design, they sit in demanding machines, and the machines are often older than the people maintaining them. This guide explains how we manufacture worm gears, which materials we use, what ratios we make and what you need to send us to get a replacement that fits first time.
Agar aap “worm garari banane wale Ludhiana mein” ya “worm gear supplier in Punjab” dhoondh rahe hain, to yeh page aapke liye hai. Drawing ya sample, dono se banate hain, aur worm gear job work (labour job) bhi karte hain.
In short: we make new worm gear sets, replace worn ones from your sample, and do worm teeth cutting and hobbing on your own material. Ludhiana mein worm garari ka poora kaam ek jagah: naya set, replacement, ya sirf labour job.
What a worm gear set is (worm garari kya hoti hai)
A worm gear drive has two parts. The worm is a hardened steel shaft with a thread cut along it, like a screw. The worm wheel is a gear whose teeth are curved to wrap around the worm thread. Hindi mein log isko worm garari ya worm wheel aur worm shaft ka set kehte hain.
As the worm turns, the thread pushes the wheel teeth sideways. The wheel moves one tooth for each start of the thread per revolution of the worm. A single start worm driving a 50 tooth wheel gives a 50:1 reduction in one mesh, in a housing far smaller than a multi stage spur gearbox of the same ratio. That is why worm drives are used in lifts, hoists, conveyors, sugar mill drives, textile machines and machine tools.
Worm gear ratios we manufacture
Most of the worm sets we make fall between 5:1 and 100:1. Below about 5:1 the thread angle becomes steep and other gear types are a better choice. Above 100:1 efficiency drops sharply and a two stage arrangement is usually more practical.
The ratio is set by two numbers: teeth on the wheel and starts on the worm.
- Single start worm with a 40 tooth wheel: 40:1
- Double start worm with the same wheel: 20:1
- Four start worm with the same wheel: 10:1
Single start worms are usually self locking, so the wheel cannot drive the worm backwards. Multi start worms are more efficient but not self locking. Ratio batayein ya purana set bhejein, hum same ratio ka naya set bana denge.
Worm gear material: phosphor bronze wheel, hardened ground worm
For the worm we use case hardening alloy steel such as EN353, EN36 or 20MnCr5, carburised, hardened to 55 to 60 HRC and then ground on the thread. Grinding after hardening matters: heat treatment always distorts the thread a little and grinding corrects it. An unground hardened worm runs noisier and wears its wheel faster.

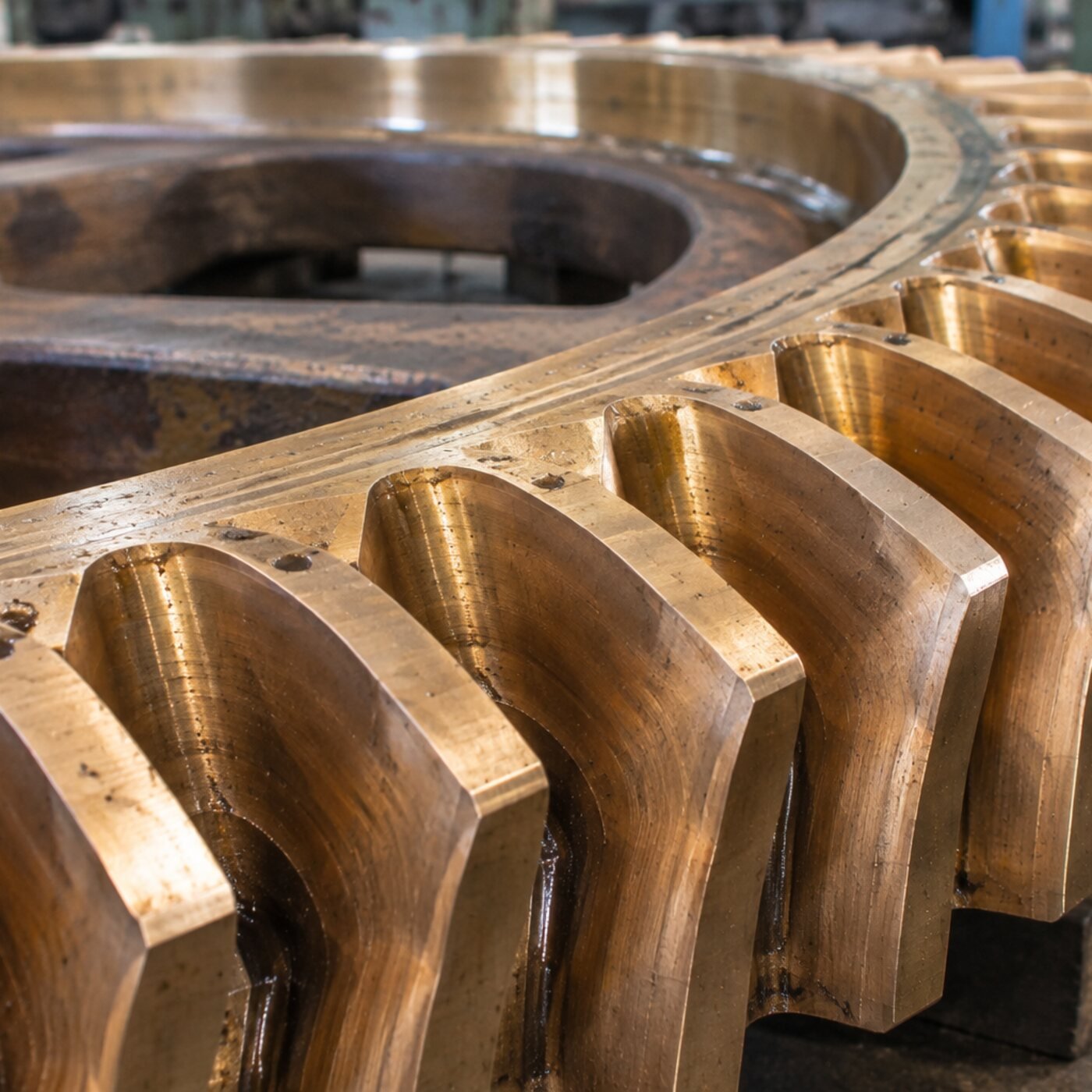

For the worm wheel we use phosphor bronze in most cases. Bronze is deliberately softer than the steel worm. It takes the sliding contact, holds oil in its surface, and is the part designed to wear. Replacing a bronze wheel after years of service is far cheaper than replacing a ground steel worm.
For light duty or intermittent use we also make cast iron worm wheels, which cost less but will not match bronze for life under continuous duty. We will tell you which one suits your application instead of quoting the cheaper option by default.
Why worm gearboxes run warm
The worm thread slides along the wheel tooth instead of rolling on it. Sliding means friction, and friction means heat. A well made worm set at a moderate ratio is 85 to 90 percent efficient; at very high ratios it can fall below 50 percent. This is geometry, not a defect, and it is why worm gearboxes have cooling fins and why oil grade matters. If a worm gearbox in your plant is too hot to touch, check oil level and grade first, then check whether the duty has increased since the box was specified.
How we manufacture worm gears in Ludhiana
- Material selection: certified steel and bronze, mill test certificates on request.
- Turning: worm blank and wheel blank turned to size, bore and keyway machined to drawing.
- Thread and tooth cutting: the worm thread is cut on a lathe or thread milling machine; the wheel teeth are hobbed with a hob matched to the worm. This matching is why worm and wheel are always made together as a pair.
- Heat treatment: the worm is carburised and hardened to a controlled case depth.
- Grinding: the hardened worm thread is ground to the finished profile.
- Assembly check: the pair is assembled at the correct centre distance, backlash is measured and the contact pattern is checked with marking compound before dispatch.
Our turning and gear cutting capacity goes up to about 8 ft (2400 mm) diameter, so we cover worm wheels for large slewing drives, kiln and mill drives and heavy winches, as well as the small sets used in conveyors and actuators. See all our gears.
Worm gear services: teeth cutting, hobbing and job work (labour job)
You do not have to buy a complete set from us. Many workshops and gearbox repairers send their own material and we do only the machining. Services we offer on worm gears:
- Worm wheel teeth cutting (hobbing) on your bronze or cast iron blank, matched to your existing worm
- Worm thread cutting on your shaft, single or multi start, right or left hand
- Hardening and thread grinding of worms you have already cut
- Re-bronzing: fitting a new bronze rim on an old worm wheel hub and cutting fresh teeth
- Reverse engineering from a worn sample when no drawing exists
- Gearbox repair: replacing the worm set inside your gearbox and checking bearings and seals
Bahut se customers apna bronze casting ya worm shaft ka material khud dete hain, hum sirf teeth cutting, hobbing, hardening aur grinding karte hain. Labour job ka rate material ke bina hota hai, isliye cost kam rehti hai. Full list on our gear job work page.
Worm gear price in Ludhiana
Worm gear price depends on centre distance, module, ratio, material (bronze vs cast iron wheel) and quantity. A small 40:1 set for a conveyor and an 800 mm bronze wheel for a mill drive are very different jobs, so we quote per drawing or per sample rather than publishing a flat rate. Send the sample or the dimensions below and you will have a price the same day. Single piece bhi banate hain, batch order bhi.
How to order a replacement worm gear set
The fastest route is to send us the old pair. Worm and wheel are a matched set and having both lets us confirm every dimension directly. If you cannot send a sample, send:
- Centre distance between worm shaft and wheel shaft
- Number of teeth on the wheel
- Number of starts on the worm
- Module or axial pitch
- Hand of thread, right or left
- Bore and keyway on both parts
- Overall length of the worm and its bearing journal diameters
- Face width of the wheel
We supply worm sets individually, as matched pairs and in batches for OEM customers. Every set is test assembled before it leaves our works. Full specifications are on our worm gear and worm wheel sets page.
FAQ: worm gear manufacturer in Ludhiana
Kya aap sample se worm garari bana sakte ho? Haan. Purana worm aur wheel bhejein, hum measure karke exact replacement banate hain.
Worm wheel bronze ka hona chahiye ya cast iron? Continuous duty ke liye phosphor bronze; light ya intermittent duty ke liye cast iron chal jata hai. Hum application dekh kar batate hain.
Worm gear job work karte ho? Haan, customer ke material par teeth cutting, hobbing, hardening aur grinding.
Delivery time kitna hai? Standard sets 1 to 2 days; urgent replacement par baat ho sakti hai.
Which cities do you supply? Most of our worm gear work comes from Punjab (Ludhiana, Jalandhar, Amritsar, Mandi Gobindgarh), Chandigarh, Haryana (Panipat, Yamunanagar), Himachal (Baddi) and Delhi NCR, and we ship all over India by transport. Export orders go out in wooden box packing. Same day quote milta hai.
